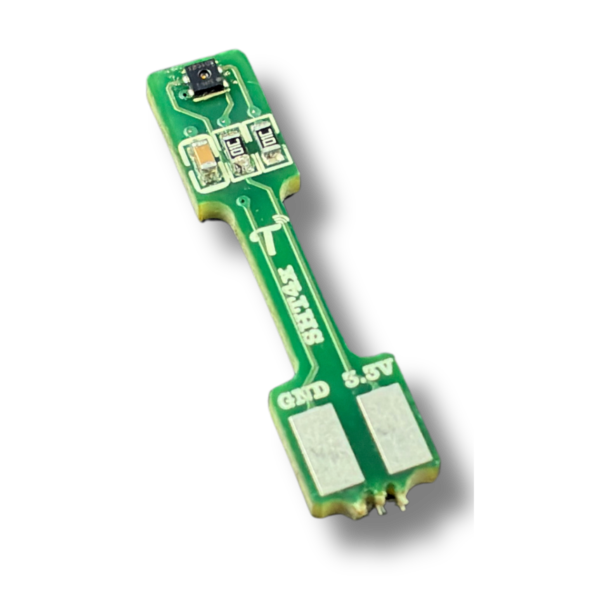

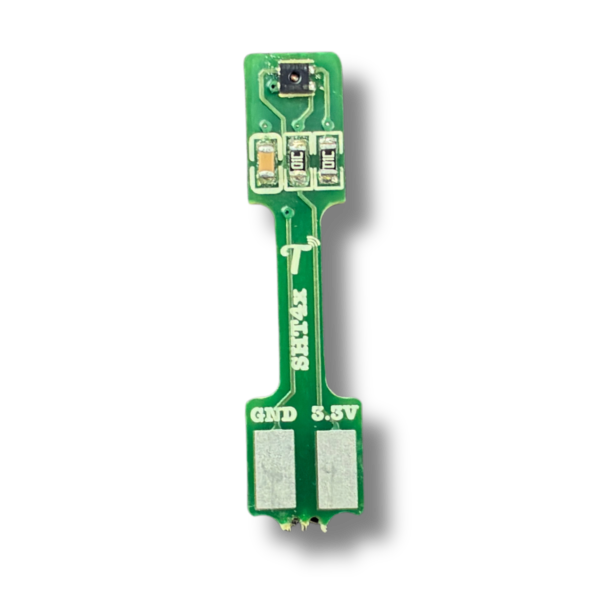

The Tarangify SHT45 Temperature & Humidity Sensor PCB combines the high-accuracy Sensirion SHT45 sensor with a compact rigid PCB designed for easy integration into electronic and IoT systems.
With temperature accuracy of ±0.1°C and humidity accuracy of ±1% RH, the SHT45 is suitable for applications where higher measurement accuracy is required compared with standard temperature and humidity sensors.
The sensor communicates through the I²C interface, making it easy to connect to ESP32, Arduino, Raspberry Pi, STM32, Nordic, RAK Wireless, and other I²C-compatible platforms.
The compact PCB format is particularly suitable for OEM product development, embedded electronics, environmental monitoring, HVAC systems, smart agriculture, weather stations, and data logging applications.
Important — PCB Version
This product is the rigid PCB version of the SHT45 sensor.
The following are NOT included:
- Cable
- External probe
- M12 metal housing
- Sintered metal filter
- Protective enclosure
- Mounting hardware

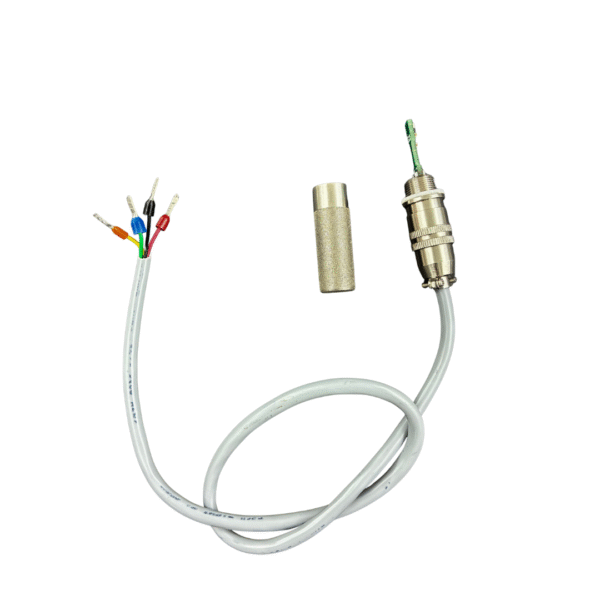

For a cable-connected industrial probe with a metal housing, see the Tarangify SHT45 M-Series Probe.
Technical Specifications
| Specification | Details |
|---|---|
| Sensor | Sensirion SHT45 |
| Measurements | Temperature & Relative Humidity |
| Temperature Accuracy | ±0.1°C |
| Humidity Accuracy | ±1% RH |
| Temperature Range | -40°C to +125°C |
| Humidity Range | 0–100% RH |
| Resolution | 16-bit |
| Operating Voltage | 1.08–3.6V |
| Interface | I²C |
| I²C Address | 0x44 (default) |
| PCB Type | Rigid PCB |
| PCB Length | 23.875 mm |
| PCB Width | 6.000 mm |
| Pad-to-Pad Distance | 3.176 mm |
| Cable | Not included |
| Probe | Not included |
| Housing | Not included |

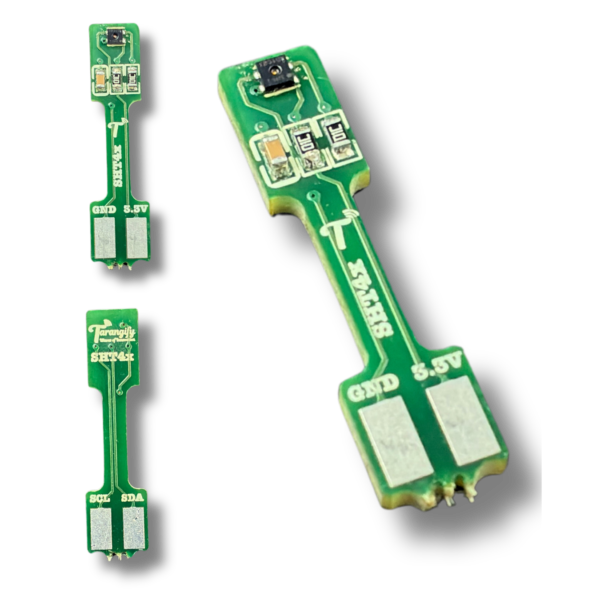

PCB Dimensions
Overall PCB Size:
23.875 × 6.000 mm
Pad-to-Pad Distance:
3.176 mm
The compact rigid PCB is designed for integration into custom electronics, sensor assemblies, IoT devices, and product enclosures.

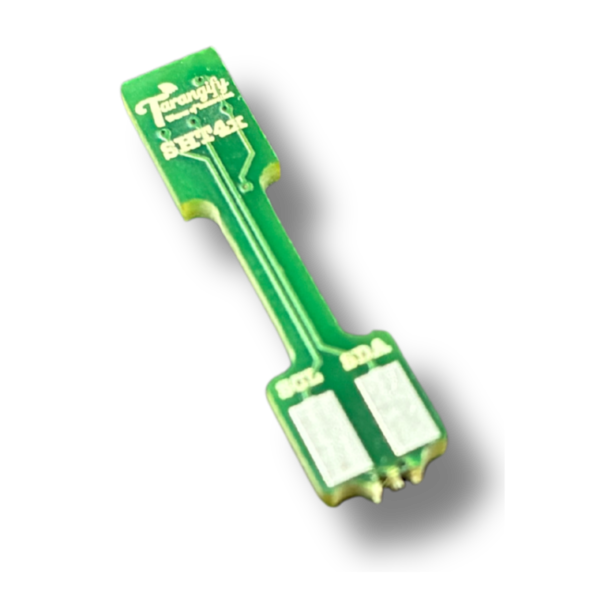

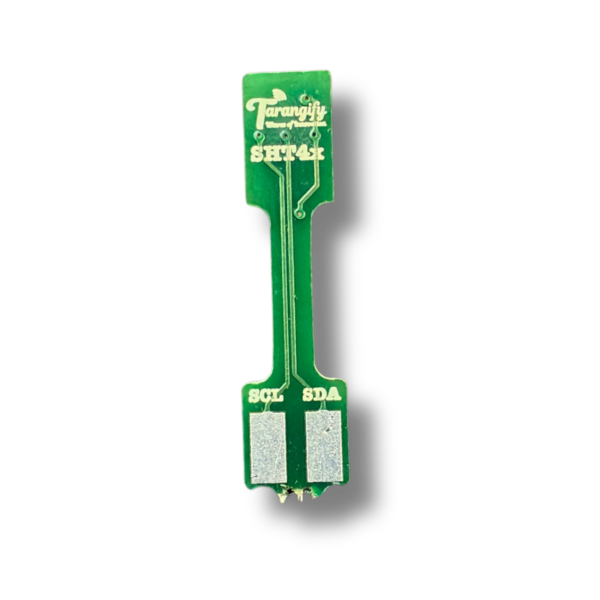

I²C Interface
The SHT45 communicates using the standard I²C digital interface.
| Connection | Function |
| VCC / VDD | Power |
| GND | Ground |
| SDA | I²C Data |
| SCL | I²C Clock |
Default I²C Address: 0x44
Compatible Platforms
Suitable for use with:
- ESP32
- ESP8266
- Arduino
- Raspberry Pi
- STM32
- Nordic nRF52 / nRF53
- RAK Wireless platforms
- Other I²C-compatible microcontrollers
Applications
- Precision environmental monitoring
- IoT devices
- HVAC monitoring
- Weather stations
- Smart agriculture
- Greenhouse and polyhouse monitoring
- Cold storage monitoring
- Server room monitoring
- Industrial monitoring
- Data logging
- Smart home systems
- Embedded electronics
- Laboratory and measurement equipment
What’s Included
Package Contents:
- 1 × Tarangify SHT45 Temperature & Humidity Sensor Rigid PCB
Not Included
- Cable
- External probe
- M12 housing
- Sintered filter
- Enclosure
- Connector
- Mounting hardware
